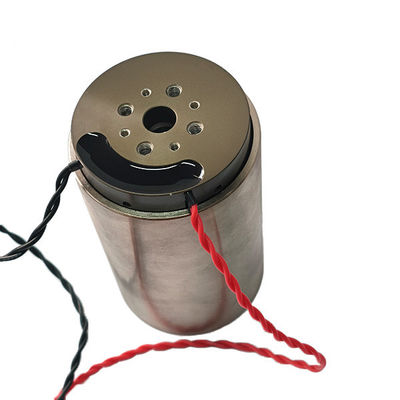

980N Large Cylindrical Linear Voice Coil Motor Designed For Driving Large Industrial Equipment

The SUPT MOTION VCAR0980-0249-00A is currently one of the cylindrical linear voice coil motors with the highest thrust in the industry. It was developed specifically for aerospace and large industrial equipment drive applications, with a peak thrust of 980N, a continuous thrust of 605N, and a total stroke of 24.9mm. a body diameter of 126 mm, a length of 134.5 mm, and a moving coil weight of 1,426 g. It can be directly integrated into mechanisms for aerospace component assembly, large industrial machine tools, and heavy-duty equipment positioning, enabling precise and stable drive and positioning of ultra-heavy components, and meeting the stringent operational requirements of high-end industrial and aerospace applications.
This voice coil motor features an aerospace-grade, high-strength titanium alloy housing and an ultra-high-power winding structure, with an impact resistance of up to 10,000 N/m². It can withstand heavy loads and instantaneous impact forces encountered during the assembly of aerospace components and the operation of large industrial equipment without deformation or performance degradation, meeting the high reliability and precision standards of aerospace products.
Structurally, the voice coil motor features an integrated sealed design with an excellent protection rating, enabling it to withstand dust, oil, and coolant corrosion in industrial environments. Its internal components are resistant to wear and corrosion, ensuring a long service life and significantly reducing maintenance costs and downtime for large industrial equipment. With standardized mounting interfaces, it can directly replace hydraulic and servo drive components in traditional large-scale equipment.
Compared to traditional ultra-heavy-duty drive solutions, the VCAR0980-0249-00A features zero backlash, low hysteresis, fast response, high precision, and strong reliability. It can significantly improve the precision and efficiency of aerospace component assembly and the operation of large-scale industrial equipment. It is widely applicable to scenarios such as aerospace component assembly equipment, large industrial machine tool drives, heavy-duty equipment positioning systems, marine equipment drives, and large-scale energy equipment regulation. It provides highly reliable, ultra-heavy-duty precision drive solutions for the high-end industrial and aerospace sectors.

Specifications:

Peak Force: 980 N

Continuous Force @25℃: 605 N

Total Stroke: 24.9 mm

Max Voltage: 41.5 V

Back EMF Constant: 104 V/m/s

Coil Weight: 1426 g

Stator Diameter: 126 mm

Length: 134.5 mm

Technical Parameters:

Applications:

 Technical indicators & specifications can be customized

 Satisfactory after-sales service
