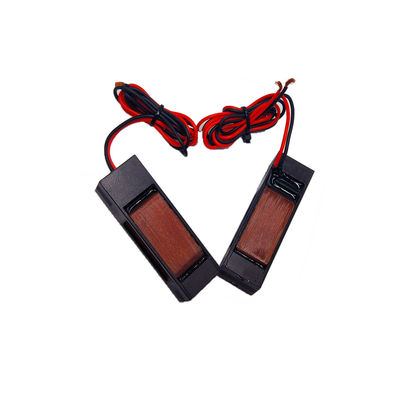

65N Peak Force 100mm Stroke High Power Rectangular Linear Motor For Machine Tools
পণ্যের বিবরণ
| বৈশিষ্ট্য রক্ষা করুন | সম্পূর্ণরূপে আবদ্ধ | মডেল নম্বার | VCAS0065-1000-00A |
|---|---|---|---|
| নিয়ন্ত্রণ পদ্ধতি | ইলেকট্রনিক | মোট স্ট্রোক | 100 মিমি |
| নির্মাণ | স্থায়ী চুম্বক | পিক ফোর্স | 65N |
| আকার | 170×59.6×81.9 মিমি | কীওয়ার্ড | ভয়েস কয়েল লিনিয়ার মোটর |
| ভোল্টেজ | 28.7V | কয়েলের ওজন | 135 জি |
| গতি | উচ্চ গতি (rpm) |
পণ্যের বর্ণনা
Product Description:
The VCAS0065-1000-00A is a high-thrust rectangular voice coil motor with a peak thrust of 65 N, a continuous thrust of 22.4 N, and a long stroke of 100 mm. This product is specifically designed for micro-machines, precision grinding spindles, and heavy-duty positioning platforms that require high rigidity and direct drive.
This rectangular linear voice coil motor operates at a maximum voltage of 28.7 V and has a back-EMF constant of 9.7 V/m/s. The moving coil weighs 135 g, and the overall dimensions are 170 × 59.6 × 81.9 mm. Despite its powerful performance, its rectangular structure allows for integration into gantry or bridge-type XY systems without creating excessive installation height.
Traditional micro-machines rely on ball screws, but backlash and wear limit micron-level precision. The VCAS0065-1000-00A replaces rotary motors and screws with direct linear thrust, achieving higher bandwidth and zero backlash. The 100mm stroke is sufficient to meet the milling, engraving, or inspection scanning needs of small parts.
In semiconductor back-end-of-line (BEOL) equipment, such as bonding machines or trimming stations, the 65N thrust is sufficient for light cutting or probe testing while maintaining smooth operation. The 22.4N continuous thrust allows for sustained operation without overheating when equipped with appropriate heat dissipation.
In active vibration damping applications for heavy-duty equipment, this rectangular voice coil motor generates counteracting thrust to offset low-frequency disturbances. Furthermore, in precision mechanical simulations, the linear current-thrust relationship simplifies the control process.
Features:
-
Peak Force:65 N
-
Continuous Force @25℃: 22.4N
-
Total Stroke: 100 mm
-
Max Voltage: 28.7 V
-
Back EMF Constant:9.7 V/m/s
-
Coil Weight: 135g
-
Dimensions (L×W×H): 170×59.6×81.9 mm
Product Parameters:
| Product Model | Peak Force (N) |
Continuous Force at 25℃(N) |
Total Stroke (mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Weight of the coil (g) |
Length (mm) |
Width (mm) |
Height (mm) |
| VCAS0002-0498-00A | 2.1 | 1.3 | 50 | 11.3 | 1.3 | 15 | 72 | 42.6 | 33 |
| VCAS0002-0747-00A | 2.1 | 1.3 | 74.7 | 11.3 | 1.3 | 15 | 100.5 | 42.6 | 37 |
| VCAS0006-0030-00A | 6.1 | 3.2 | 3 | 13.3 | 4.6 | 18.2 | 25.1 | 34.1 | 27 |
| VCAS0006-0099-00A | 6.1 | 3.2 | 10 | 13.7 | 4.6 | 18.2 | 33.5 | 34.1 | 26.9 |

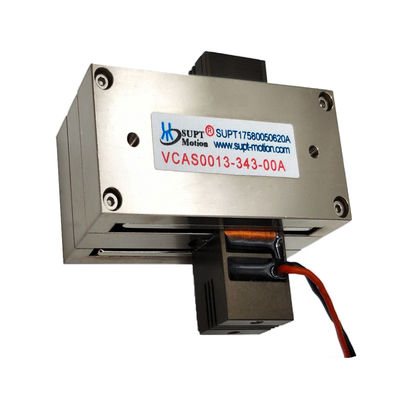

| VCAS0013-0343-00A | 13 | 8 | 34.3 | 12.6 | 5.8 | 40 | 68.3 | 60 | 34.8 |
| VCAS0065-1000-00A | 65 | 22.4 | 100 | 28.7 | 9.7 | 135 | 170 | 59.6 | 81.9 |
VCAS0065-0100-00A:
| Parameter | value | Parameter | value |
| Model | VCAS0065-0100-00A | Peak thrust | 65N |
| Continuous Thrust (25°C) | 22.4N | Total stroke | 100mm |
| Maximum Voltage | 28.7V | Back-EMF constant | 9.7V/m/s |
| Length | 170mm | Width | 59.6mm |
| Height | 81.9mm | Coil Weight | 135g |
Applications:
1.Micro milling / engraving stages
2.Semiconductor bonder Z-axis
3.Precision force simulation
4.Active heavy-load vibration canceling
5.High-thrust scanning
| The main application of a voice coil motor: | ||||||||||
| 1.Semiconductor industry:Wiring, cutting, drilling, transportation systems, welding, robotics. | ||||||||||
| 2.Valve operation in the field:Type metering valves, pressure test systems, pneumatic valve chemistry injection system. | ||||||||||
| 3.Micro Machine industry:Feed systems, micro drilling, precision stamping. | ||||||||||
| 4.Vibration System:Shaking table, vibration platform. | ||||||||||
| 5.Medical field:Micro-injection system, respiratory equipment, testing equipment. | ||||||||||
| 6.Aviation Technology:Flight control system, pilot feedback system. | ||||||||||
| 7.Commercial use field:Computer cooling pump miniature camera auto focus system. | ||||||||||
| 8.Automation industry:Laser equipment, dispenser, test equipment, textile machinery. |
